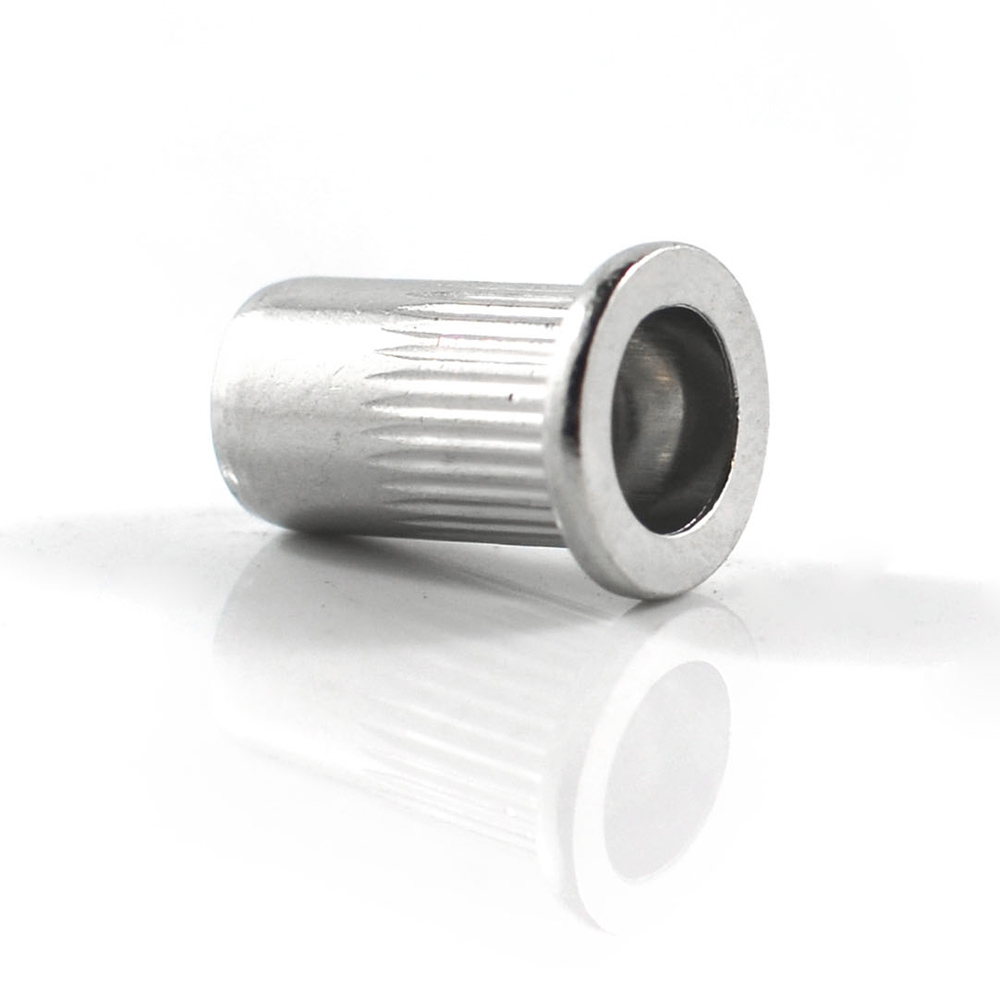

Rivet Nut M6 size with a Large Flange, Left Hand Thread in Stainless Steel 304.
Also known as a Rivnut or Nutsert.
Matching Right Hand Thread Rivet Nuts also available. Often used with M6 Swage Stud Terminals Left Hand Thread.
Creates a neat, slimline inner fixing method for wire rope runs between metal posts.
Specifications
More Information
Product Material
Stainless Steel 304
Swaging System
Hydraulic Swaging
Wire Rope Diameter
3.2mm
Product Specifications
M6 Rivet Nut
Stainless Steel 304
Grip Range: 1.0 - 3.0mm
Large 2mm Flange
Left Hand Thread
Total Length: 15.2mm
Outer Flange Diameter: 12.8mm
Rivnut Shaft Diameter: 8.9mm
Flange thickness: 1.3mm
Stock Availability
In Stock
Bulky item
No
