Jaw/Swage Mini Bottlescrew Stainless Wire Balustrade Kit #91
From$7.39
To$15.09
This tidy little wire balustrade system is more compact thank most systems, making it really great for 1000mm or less runs, on either flat or angled (stair) sections. Due to the smaller amount of adjustment in the bottlescrew thread, for longer runs we recommend kit #1 as an alternative. The lag eye screws are inserted into the timber post and the end fittings pivot to level or adjust to the required angle. So neat! Suits 3.2mm wire rope. Requires hydraulic swaging.
This tidy little wire balustrade system is more compact thank most systems, making it really great for 1000mm or less runs, on either flat or angled (stair) sections. Due to the smaller amount of adjustment in the bottlescrew thread, for longer runs we recommend kit #1 as an alternative. The lag eye screws are inserted into the timber post and the end fittings pivot to level or adjust to the required angle. So neat!

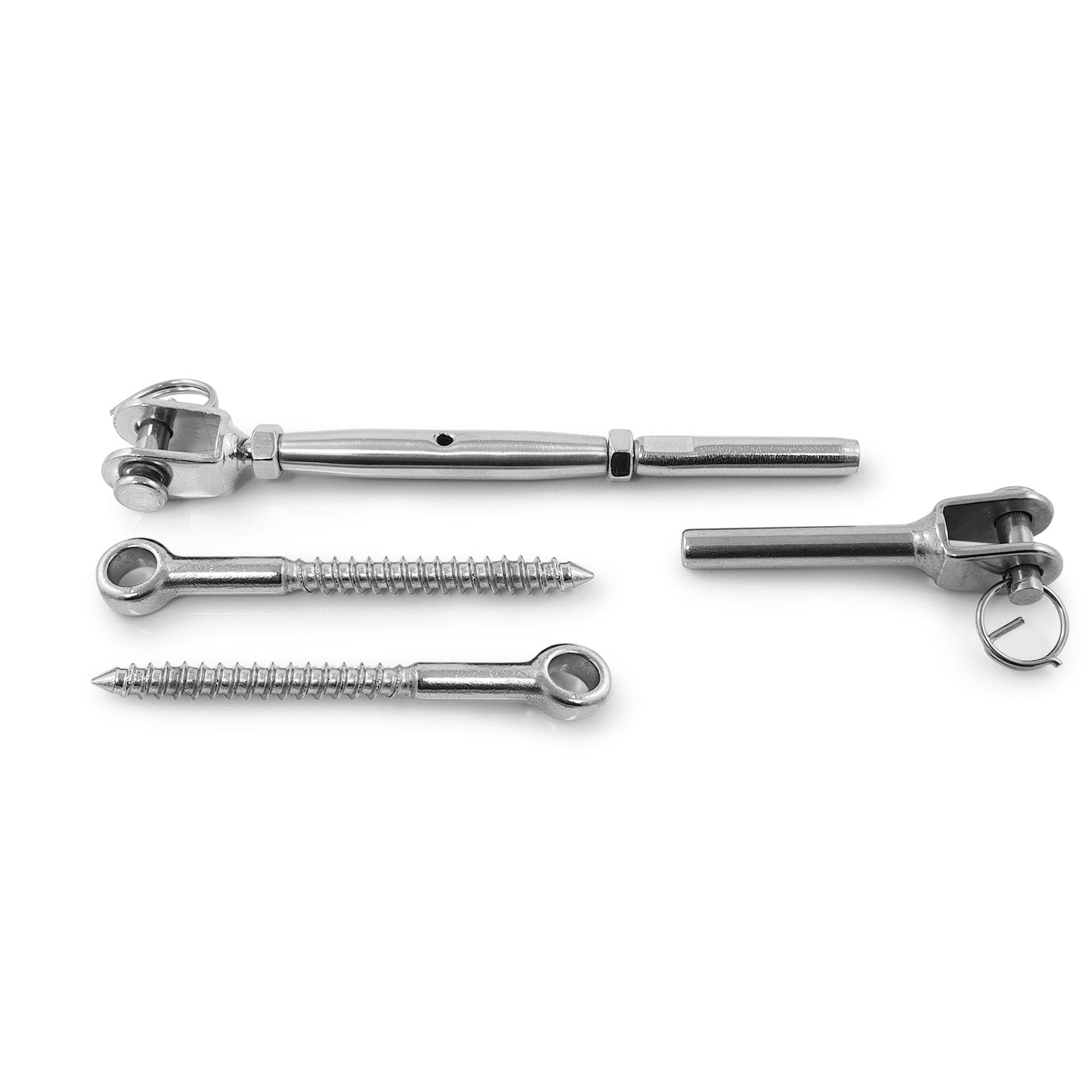

Features a Jaw & Swage Bottlescrew M5 x 3.2mm, a Fork Terminal M5 x 3.2mm and 2qty M6 x 60mm Lag Eye Screws.
Perfect to use with 3.2mm 7x7 and 1x19 wire rope.
All in stainless steel 316. These fittings require hydraulic swaging.
You can purchase hand held hydraulic swaging tools, or you can rent our 30T hydraulic press (Melbourne only).
It's recommended to use a purpose built lag eye screw driver bit to easily drive the lag eye screws into your timber posts (pre-drilling recommended).
Also recommended is the multi tool spanner to simply and easily adjust the tensioners.
Specifications
More Information
Product Material
Stainless Steel 316
Swaging System
Hydraulic Swaging
Wire Rope Diameter
3.2mm
Product Specifications
1x Jaw & Swage Bottlescrew M5 x 3.2mm SS 316
1x Fork Terminal Swage 1/8" (3.2mm) SS 316
2x Lag Eye Screws M6 x 60mm SS 316. Thread length 41mm. Outer thread diameter 5.8mm. Shank diameter 5.8mm
Stock Availability
In Stock
Bulky item
No
Compatible With
Known Incompatible Products
We haven't added anything here yet.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
Incompatible With
Known Incompatible Products
We haven't added anything here yet.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
4.7 rating from 35 reviews
