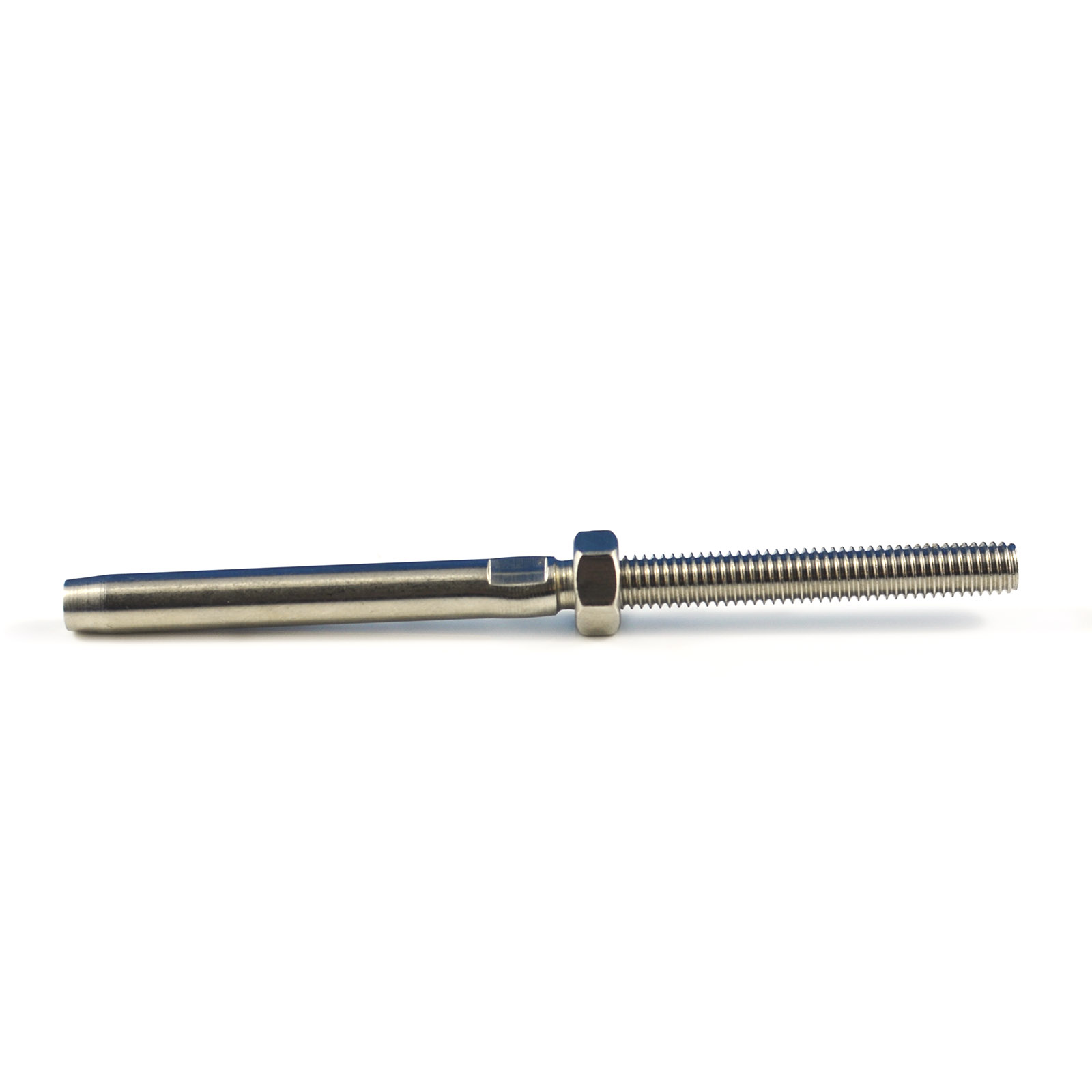

Swage Stud Terminal M5 x 40mm LHT for 3.2mm wire AISI 316

$2.10

Swage Stud Terminal LHT for 3.2mm wire rope, M5 x 40mm length. High quality forged AISI 316 marine grade stainless steel.

Availability: In stock

SKU

SF-SSTA4M54032L

Description
Specifications

Description

Swage stud terminal LHT for 3.2mm wire rope, M5 x 40mm thread length. High quality forged AISI 316 marine grade stainless steel.

Can be used to re-swage an M5 bottlescrew fitting without replacing the whole fitting. You'd just cut off the wire and swage fitting, unthread it from the bottlescrew body, and then thread this fittings on as a replacement.

Requires hand or machine hydraulic swaging.

Specifications

More Information
Product Material	Stainless Steel 316
Swaging System	Hydraulic Swaging
Wire Rope Diameter	3.2mm
Product Specifications	Swage Stud Terminal For 3.2mm wire M5 diameter Left Hand Thread 40mm thread length 41mm swage depth 90mm end-to-end length Nut included
Stock Availability	In Stock
Bulky item	No
