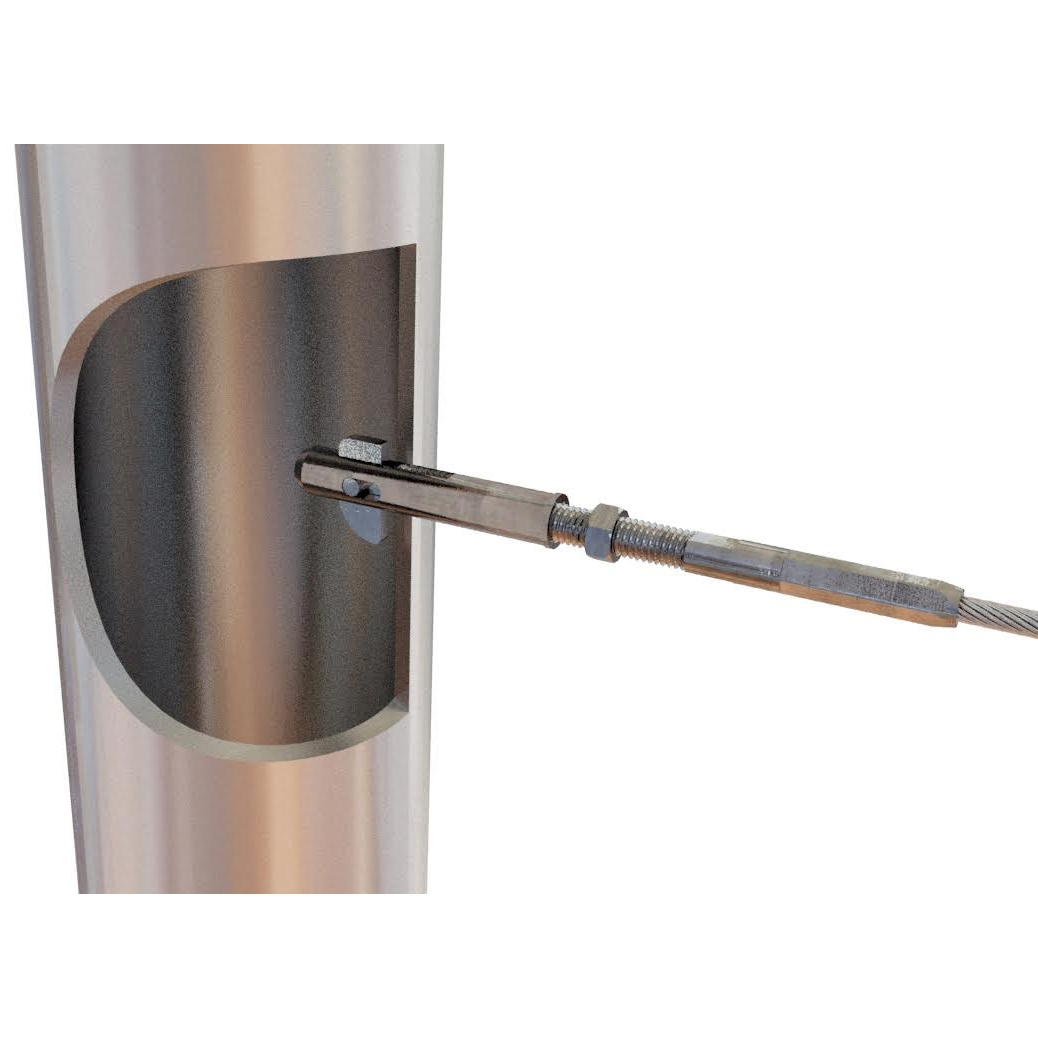

A staff favourite, the Flip Lock system allows you to create neat, streamlined wire runs between existing metal posts. No more rivet nuts needed! Used with M6 threaded fittings such as swage stud terminals for 3.2mm wire.

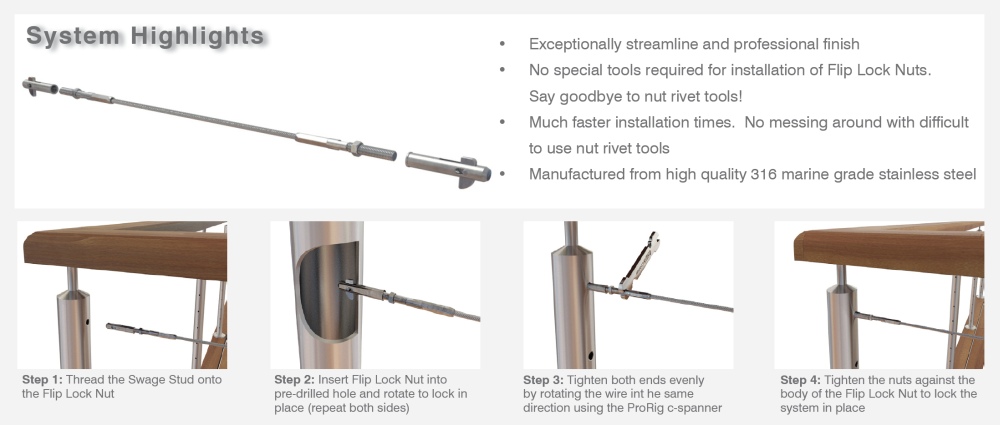

The Flip Lock Nut combined with a Swage Stud Terminal allows you to create neat, streamlined wire runs between existing metal posts. There is no design on the market like it. It eliminates the requirement for installing rivet nuts and rivet nut tools. All you require is a Flip Lock Nut RHT, swage stud terminal RHT, and then the same LHT fittings at the opposite end of the run. Used with M6 threaded fittings such as swage stud terminals for 3.2mm wire.
The complete Flip Lock System consists of the following components:
Flip Lock Nut RHT M6 x 30mm
Flip Lock Nut LHT M6 x 30mm
Swage Stud Terminal RHT M6
Swage Stud Terminal LHT M6
Specifications
More Information
Product Material
Stainless Steel 316
Swaging System
Hydraulic Swaging
Wire Rope Diameter
3.2mm
Product Specifications
Flip Lock Nut
M6 thread
30mm length
Marine Grade Stainless Steel 316
Swage Stud Terminal
M6 thread
Choose from fittings for 3.2mm wire
Marine Grade Stainless Steel 316
*D1/D are incorrect in the diagram.
D1: 8mm (drill 8.5mm hole)
D: 9.5mm
Stock Availability
In Stock
Bulky item
No
