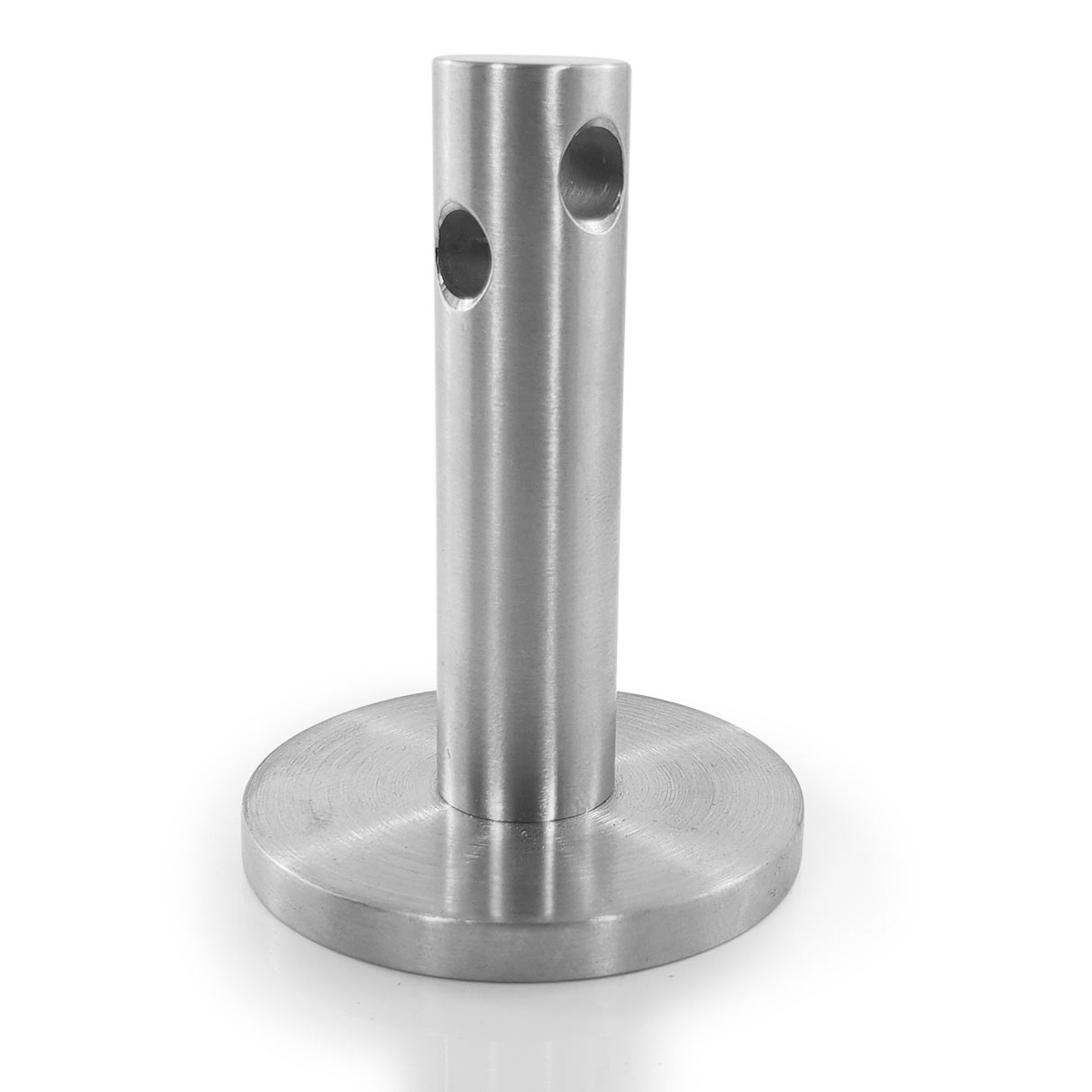

The Espaliex Surface Mount Hub is easy to install and provides an elegant, stylish finish to your green wall project.
Train vines, jasmine and other climbers and bring you wall to life. Vertical gardens are in vogue, enriching previously bare and boring walls. Using stainless wires and fixings supplied by us, you can create patterns such as diamonds or checkers for training your plants.
Strong enough for fruit tree espaliering. Mountable to masonry, timber or metal.
Can be fixed to the wall via an M8 thread. For timber mounting, you can use an M8 double threaded coach screw. Or for fixing to masonry, mount with a M8 through bolt.
Also now available in a 68mm length.
For use with 3.2mm to 5mm wire rope.
Specifications
More Information
Wire Rope Diameter
3.2mm
Product Specifications
Hole A: hole closest to wall
Hole B: hole closest to hub tip
Height (wall to max length): 122mm
Wall to hole A (centre): 103mm
Hub tip to hole B (centre): 9mm
Hub post diameter: 20mm
Base thickness: 7.5mm
Base Dia.: 67.5mm
Thread: M8 x 20mm
