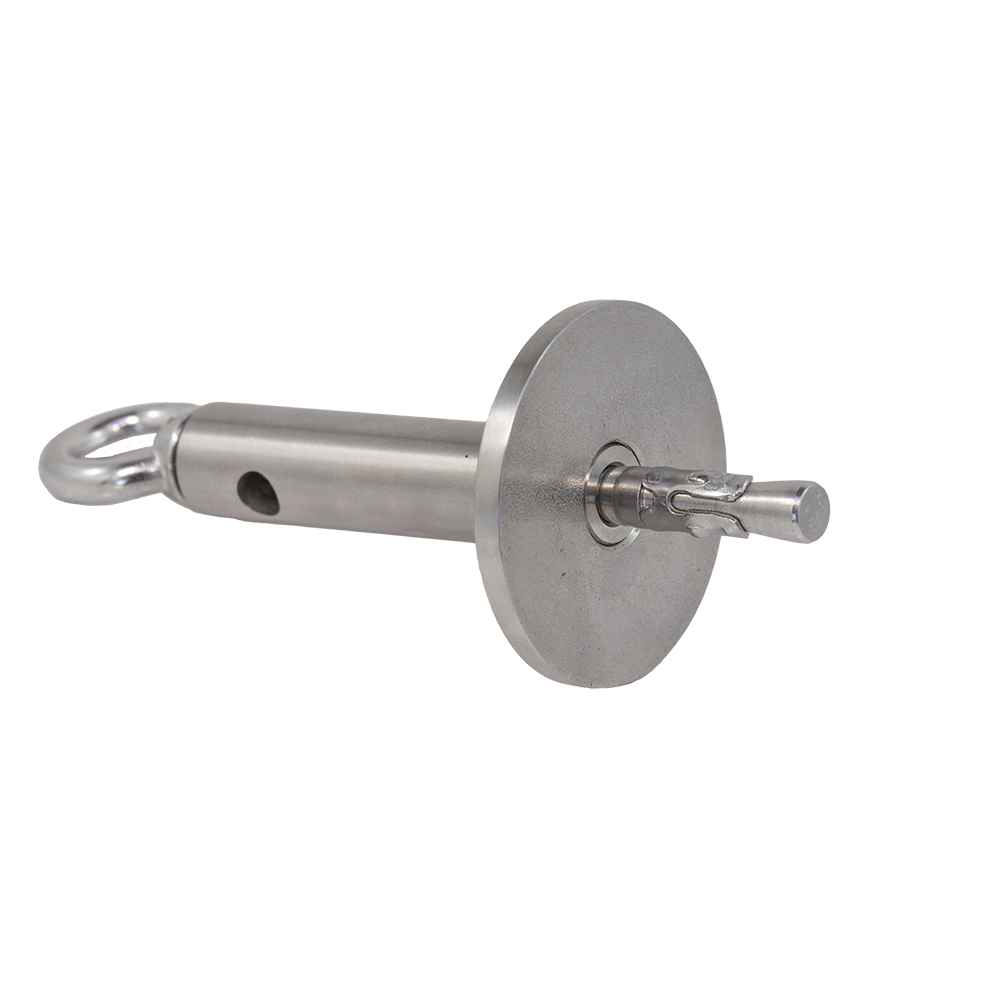

Espaliex Surface Mounted Hub 68mm Plus for Espalier/Trellis suits 3.2mm - 5mm Wire with Eye Bolt - Wood Fixing
From$18.90
To$19.10
The Espaliex Surface Mount Hub is easy to install and provides an elegant, stylish finish to your green wall project. Train vines, jasmine and other climbers and bring you wall to life. Strong enough for fruit tree espaliering. Allows for more advanced espalier designs. This kit comes with fixings for wood materials.
The Espaliex Surface Mount Hub 68mm Plus is easy to install and provides an elegant, stylish finish to your green wall project.
The addition of the adjustable eye bolt at the top allows you to run more wires at practically any angle. This allows you to get the espalier design that you couldn't quite get with other espalier fittings.
You can train vines, jasmine and other climbers and bring your wall to life. Vertical gardens are in vogue, enriching previously bare and boring walls. Using stainless wires and fixings supplied by us, you can create patterns such as diamonds or checkers for training your plants.
Strong enough for fruit tree espaliering. This kit can be fixed to timber with the M8 double thread coach screw.
For a smoother finish use 1x19 wire rope.
Also now available in a 122mm length.
For use with 3.2mm to 5mm wire rope.
Specifications
More Information
Product Material
Stainless Steel 316
Wire Rope Diameter
3.2mm
Product Specifications
Espaliex Surface Mounted Hub 68mm Plus for Espalier/Trellis suits 3.2mm - 5mm Wire
Height (wall to max length): 68mm
Base Dia.: 50mm
Thread: M8 x 20mm
Eye Bolt with Collar M6 Stainless Steel 316
Eye Bolt
M6
Thread length: 11mm
Stainless Steel 316
Dual Threaded Coach Screw M8 x 50mm AISI 316
Total Length (L) : 50mm
Timber Thread Length (L1) : 37mm
M8 Thread Length (L2): 13mm
Hex Drive 4mm
Stainless Steel 316
Dual Threaded Coach Screw M8 x 65mm AISI 316
Total Length (L) : 65mm
Timber Thread Length (L1) : 53mm
M8 Thread Length (L2) : 12mm
Hex Drive 4mm
Stainless Steel 316
Bulky item
No
Compatible With
Known Incompatible Products
We haven't added anything here yet.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
Incompatible With
Known Incompatible Products
We haven't added anything here yet.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
4.7 rating from 35 reviews
